Description

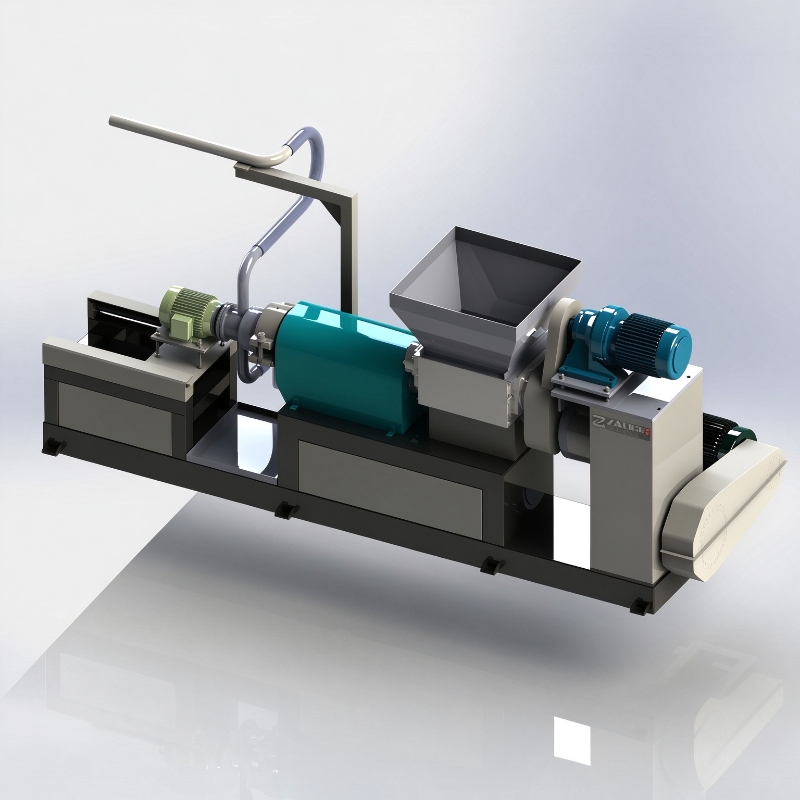

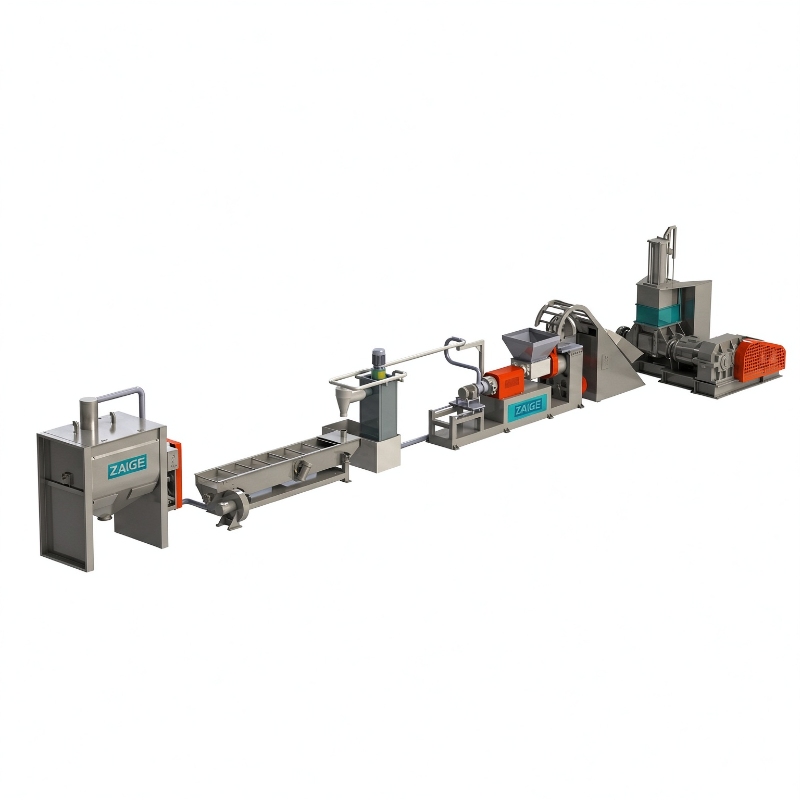

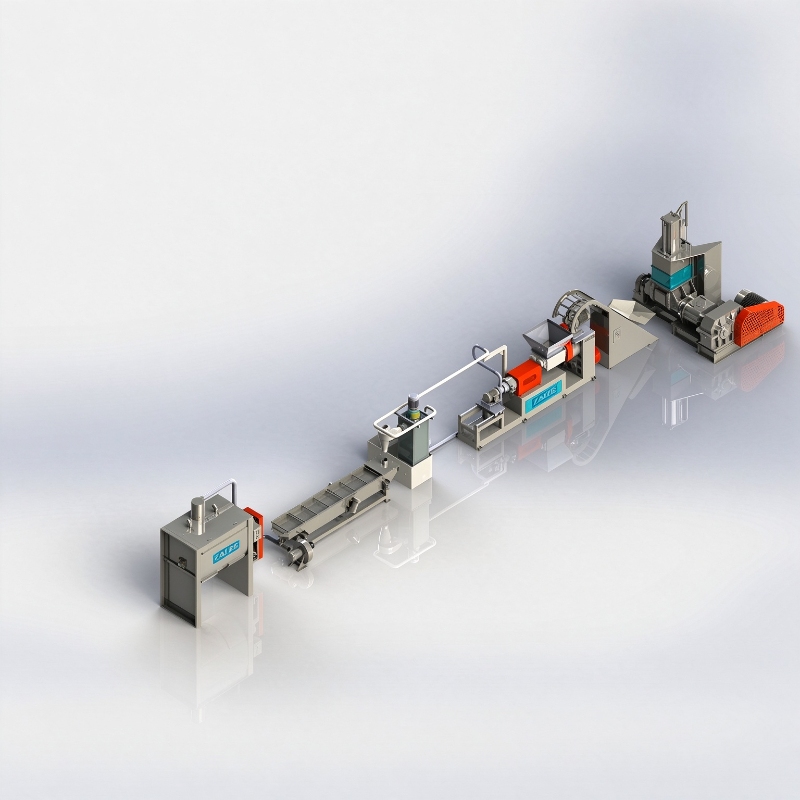

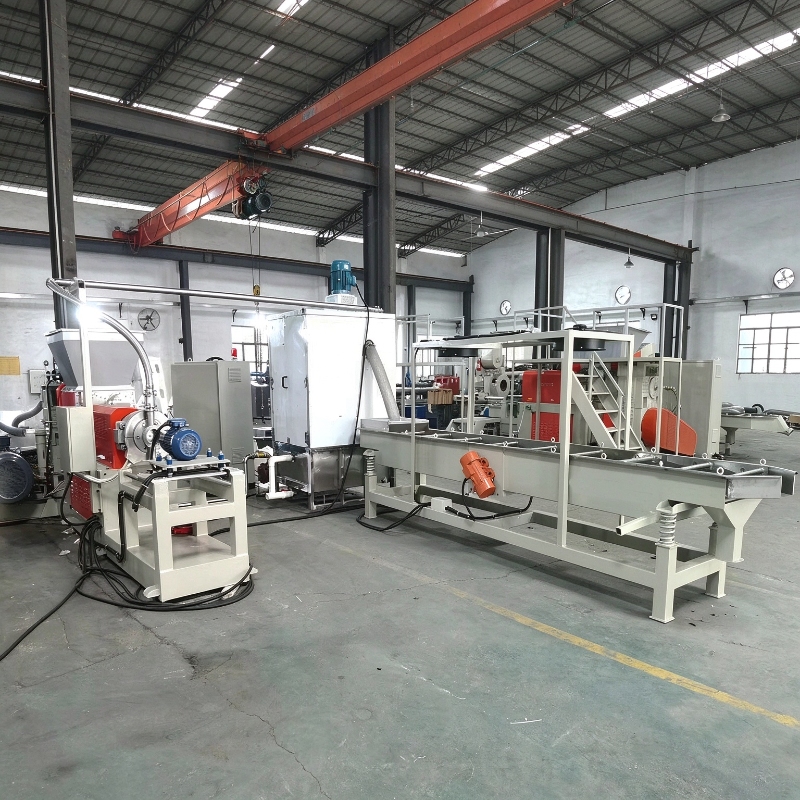

This equipment is suitable for granulating EVA, TPR, rubber PP, HDPE, LDPE, LLDPE, HIPS, PS, ABS, PC, PMMA, TPU, EVA and other recycled plastics. It adopts German reducer motor and high torque gear box, which effectively saves electricity up to 20%; the temperature control is accurate, the feeding speed is uniform, and the speed is extremely easy to adjust; the screw and barrel are made of imported materials and specially treated, which have good wear resistance and long service life; it adopts non-stop double column hydraulic screen changing, which is simple and convenient to operate, and is conducive to improving operation efficiency and production capacity.
| Model | Screw Dia | Drive Motor | Productivity | Kneader Force Feed Power | Granulating Motor | Storage Barrel | Weight |
|---|---|---|---|---|---|---|---|
| ZGDG-85 (MATCH 20L) | Φ85mm | 25HP | 100~150kg/h | 5HP | 2HP | 200kgs | 2000kgs |
| ZGDG-100 (MATCH 35L) | Φ100mm | 30HP | 200~300kg/h | 7.5HP | 2HP | 600kgs | 2500kgs |
| ZGDG-120 (MATCH 55L) | Φ120mm | 40HP | 300~400kg/h | 7.5HP | 3HP | 600kgs | 3000kgs |
| ZGDG-150 (MATCH 75L) | Φ150mm | 50HP | 400~600kg/h | 10HP | 3HP | 1000kgs | 3500kgs |
| ZGDG-165 (MATCH 110L) | Φ165mm | 60HP | 600~750kg/h | 10HP | 3HP | 1000kgs | 4000kgs |
| ZGDG-180 (MATCH 150L) | Φ180mm | 60HP | 750~1000kg/h | 10HP | 3HP | 1000kgs | 2000kgs |
