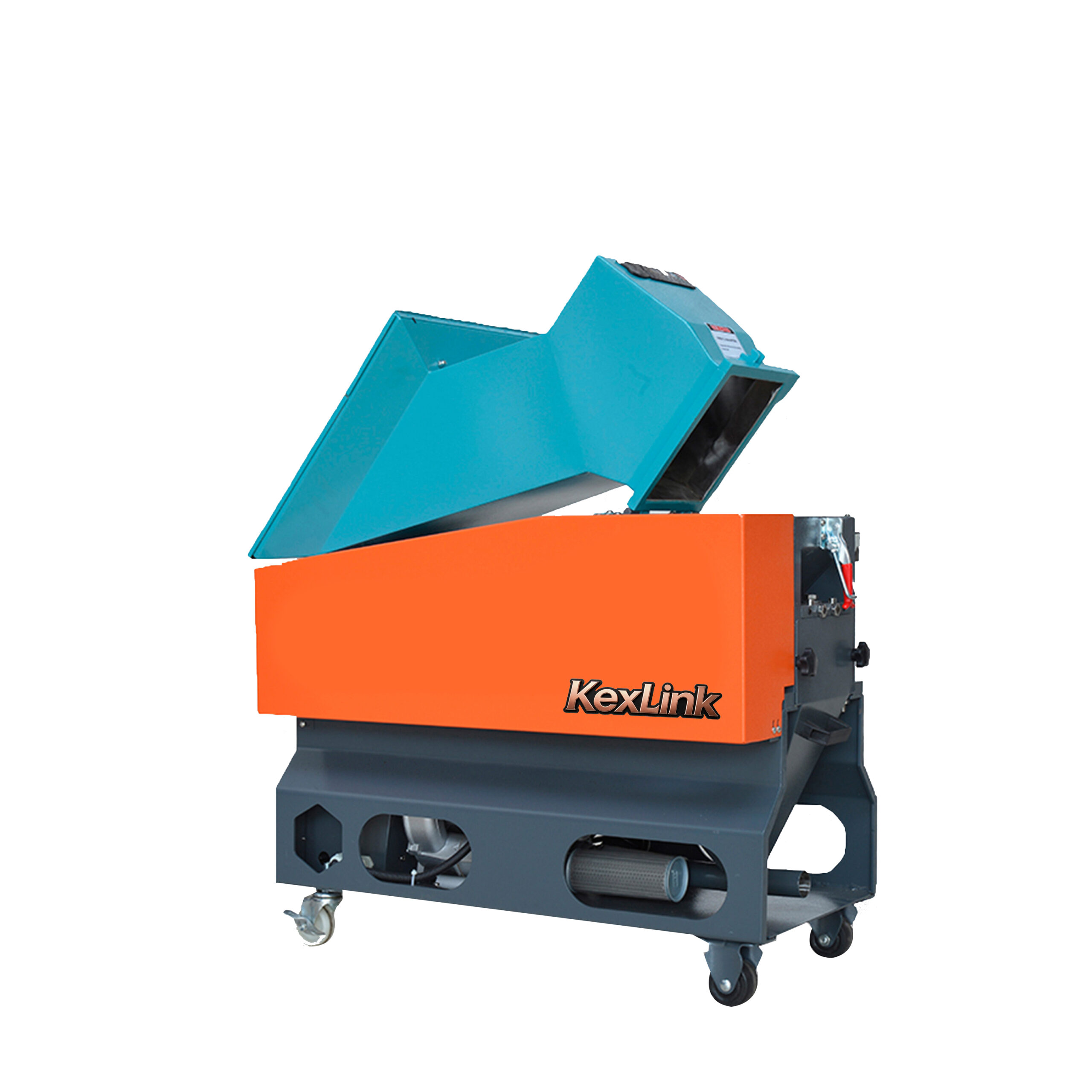

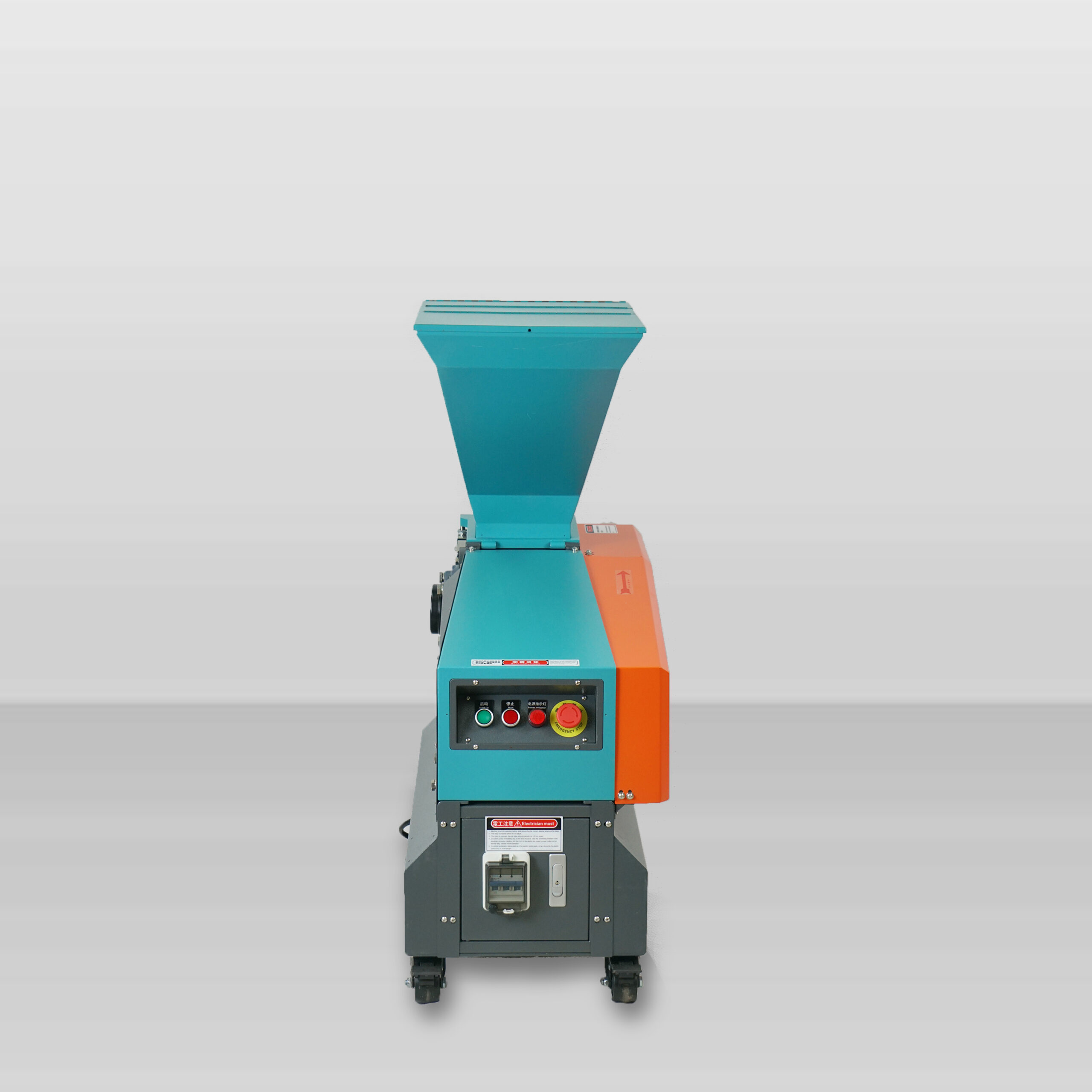

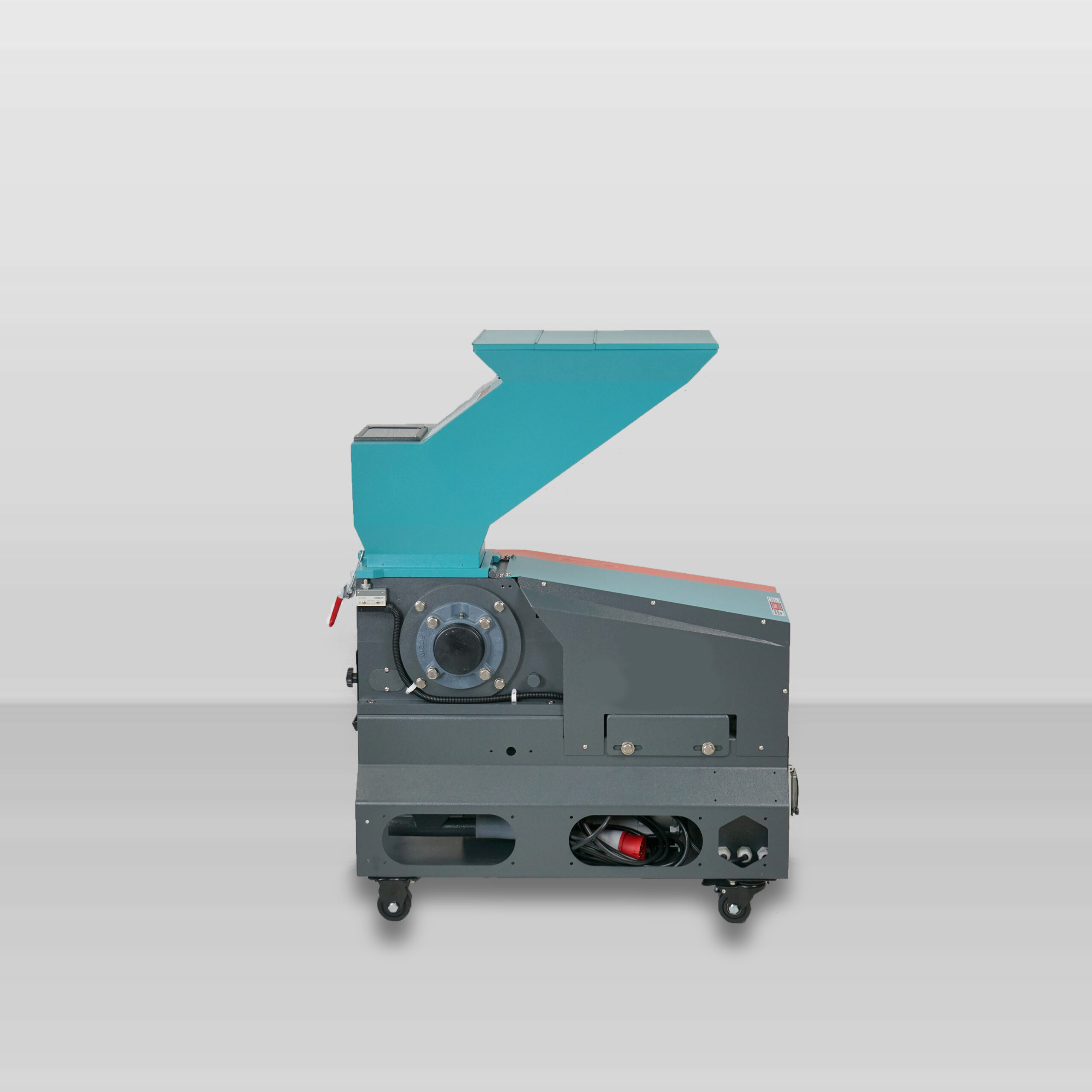

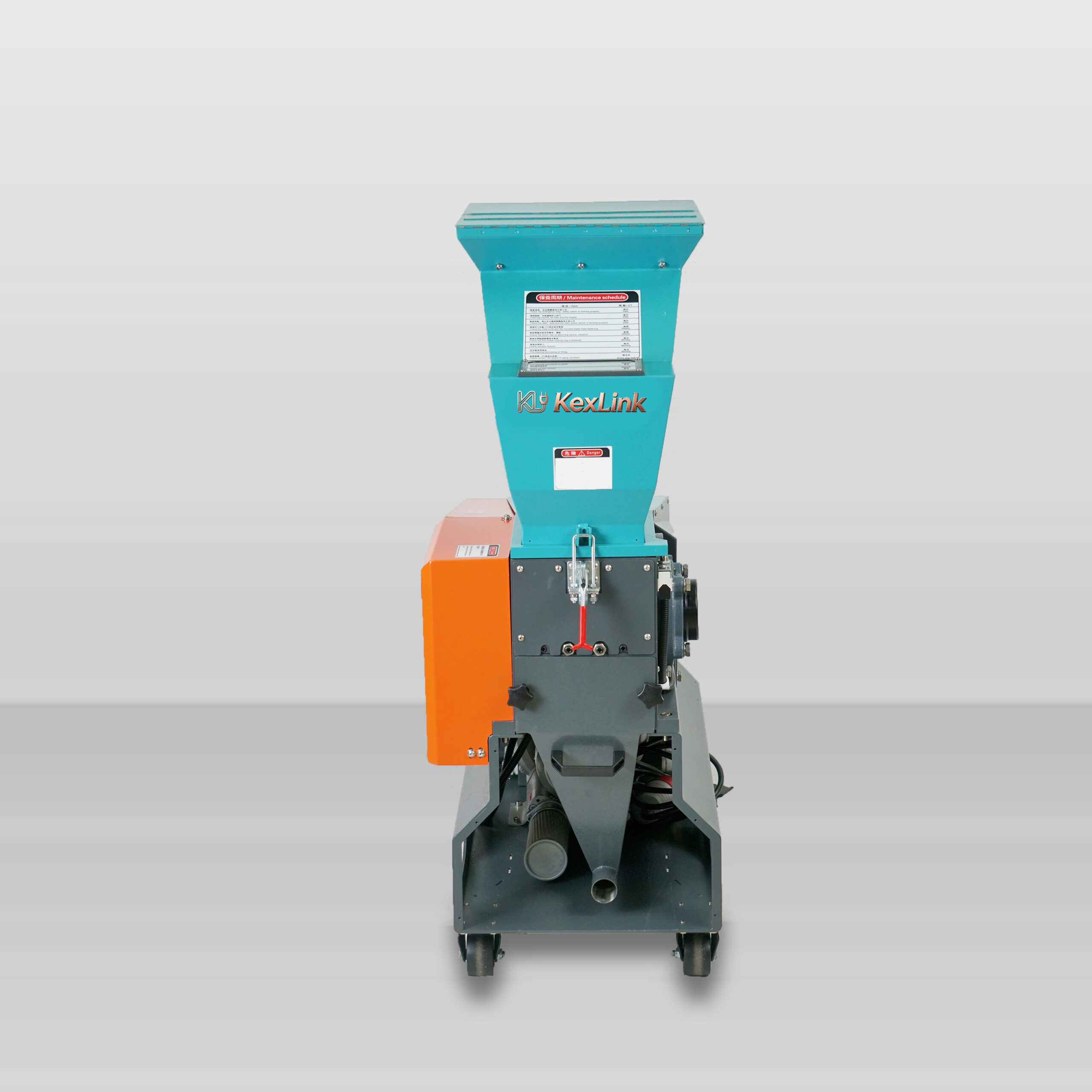

Silent Granulator for soft rubber generated during injection molding-未完成编辑

  • During the crushing process, the noise can be as low as 30 decibels, reducing noise pollution in the working environment.
  • Minimal powder, uniform particles:
  • The unique “V” cutting design results in minimal powder and uniform particles.
  • Easy to clean:
  • The crusher has five rows of zigzag cutting tools, with no screws and an open design, making cleaning without blind spots easy.
  • super durable:
  • Trouble-free service life can reach 5~20 years.
  • Environmentally friendly:
  • It saves energy, reduces consumption, and the formed products meet international environmental standards, making it environmentally friendly.
  • High return:
  • There are almost no after-sales maintenance costs, making it cost-effective.

Description

“The Silent Granulator is suitable for crushing soft sprue materials such as halogen-free, PVC, PP, PE, TPR, etc. For example, plastic injection molding sprue materials such as power cord plugs, data cables, and cable extrusions.

With the “V” shaped blade, the cutting of materials is more uniform. It is noise-free, screw-free, and has a precision integrated casting design, making it easier and faster to change colors and materials. The equipment adopts Taiwanese motor and controller components, which have low power consumption, long lifespan, and ensure stable and safe operation. It can save about 600USD of electricity per year for every 0.75kw of power. The transmission device uses European standard pulleys that have been statically and dynamically balanced, making the operation smoother and the replacement simpler.”

Model

ZGSM-600

ZGSM-800

ZGSM-1200

ZGSM-1500

Power

18.5KW

37KW

55KW

75KW

Hydraulic Motor Power

2.25KW

3.75KW

5.5KW

5.5KW

Rotor Diameter

Φ224

Φ382

Φ390

Φ390

Rotor Working Length

600mm

800mm

1200mm

1400mm

Rotor Speed

80RPM

80RPM

80RPM

80RPM

Pusher Stroke

500mm

815mm

815mm

815mm

Fixed Blades

2+2

2+2

3+3

3+3

Rotating Blades

23+4

35+4

55+4

78+4

Screen Diameter

Φ40

Φ40

Φ40

Φ40

Discharge Height

487mm

565mm

565mm

565mm

Weight

1605Kg

4051Kg

5050Kg

5858kg

Hopper Inlet Size L*W*H mm

1200*1090

1500*1417

1900*1417

2100*1400

Dimensions        L*W*H mm

1820*1300*1730

2800*1800*2080

2800*2500*2130

2800*1750*2130

White Appliances Refrigerator
PVCTPUTPE Rubber Waste
Large Plastic Pipe
Large Plastic Pipe
Large Plastic Bucket
Large Automotive Parts Bumper

Solution Case
