Description

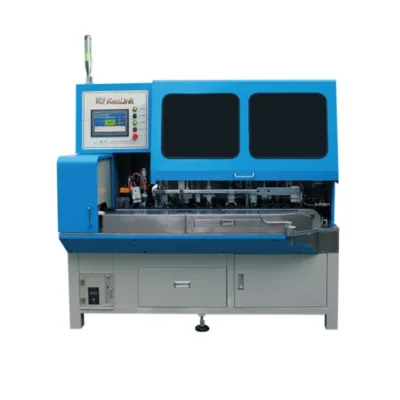

The SD-3500AS is a fully automatic terminal crimping machine that integrates wire cutting, head stripping, wire separation, color identification, terminal crimping and tail stripping into one continuous workflow — tail stripping length up to 300 mm.
It enables unmanned operation and replaces at least 4–5 manual workers compared with traditional manual lines. This reduces workplace accidents, saves labor cost and increases output, making the production process safer and more environmentally friendly.
| Item | Specification |
|---|---|
| Machine Model | SD-3500AS |
| Punching Force | 3T |
| Stripping Length | 24-26mm |
| Machine Dimension | 1850mm1000mm1800mm |
| Speed | 1000-1100 PCS/Hr |
| Voltage | AC220V/50Hz |
| Weight | 1000KG |
| Power | ≤0.35KW |
