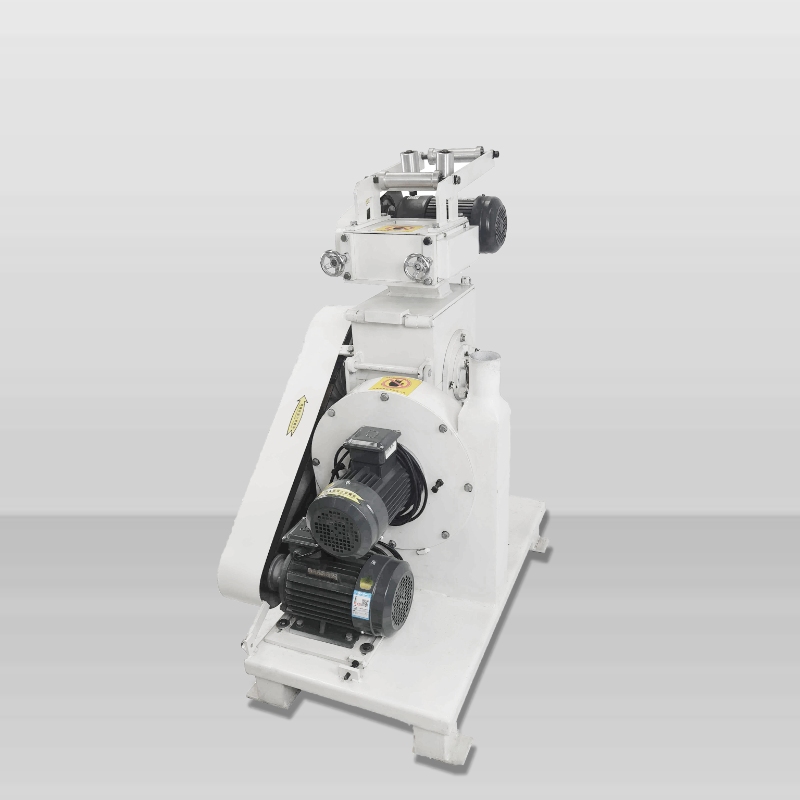

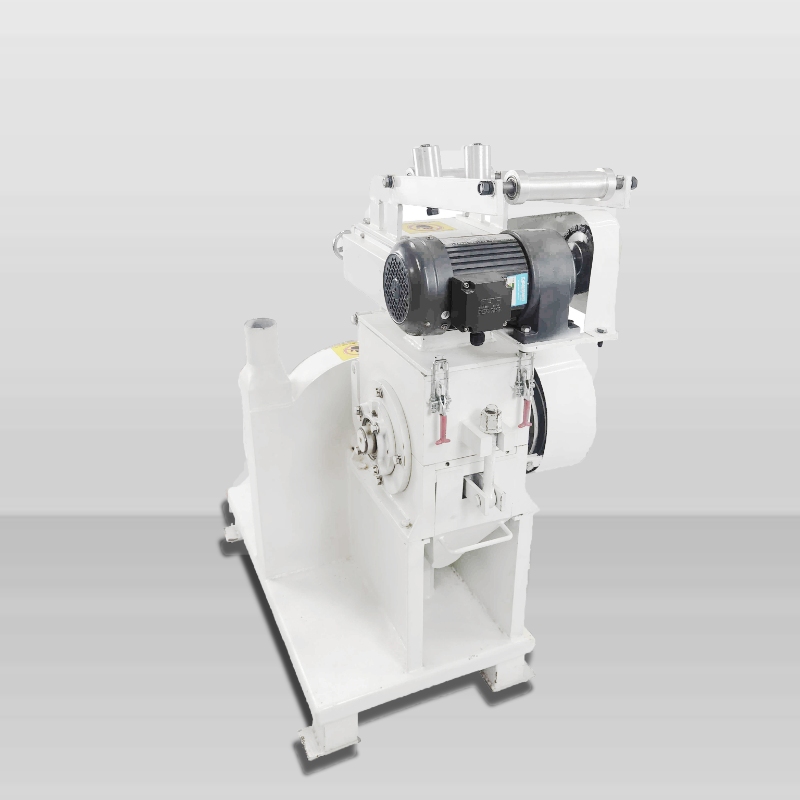

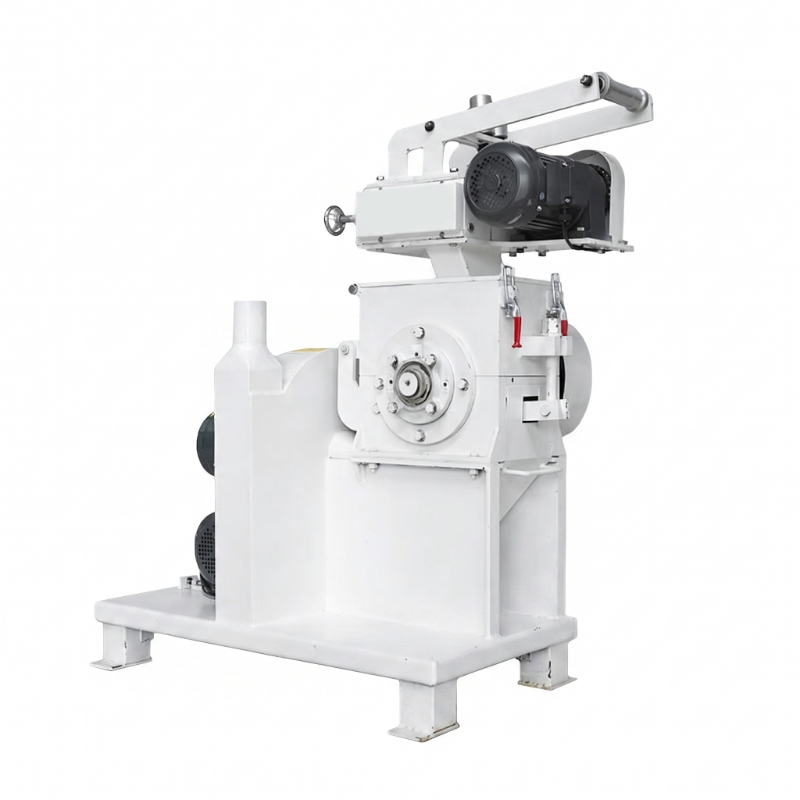

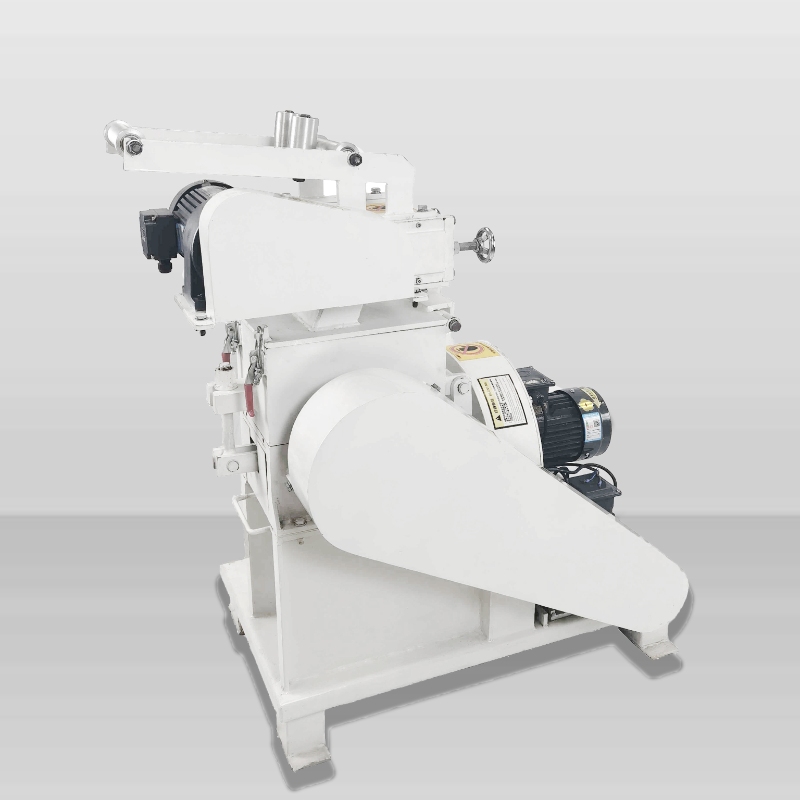

Plastic Edge Trim Crusher Recycling System for Film and Sheet

No noise:During the crushing process, the noise can be as low as 50 decibels, reducing noise pollution in the working environment.
Easy to clean:The crusher features a V-shaped diagonal cutting design and an open design, making cleaning easy with no dead corners.
Super durable:Trouble-free service life can reach 5~20 years.
Environmentally friendly:It saves energy, reduces consumption, and the formed products meet international environmental standards, making it environmentally friendly.
High return:There are almost no after-sales maintenance costs.

Categories: In-Line Hot Grinding Recycling Pelletizing

Description

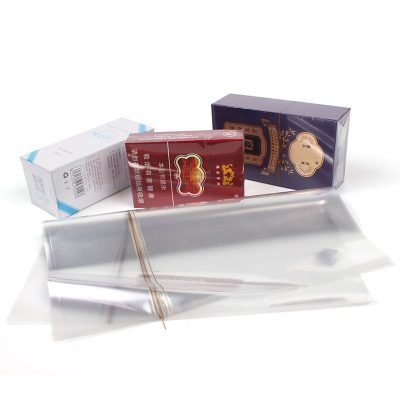

This Film Granulator is suitable for grinding various soft and hard edge materials with a thickness of 0.02~5MM, such as PP/PE/PVC/PS/GPPS/PMMA films, sheets, and plates used in stationery, packaging, and other industries.

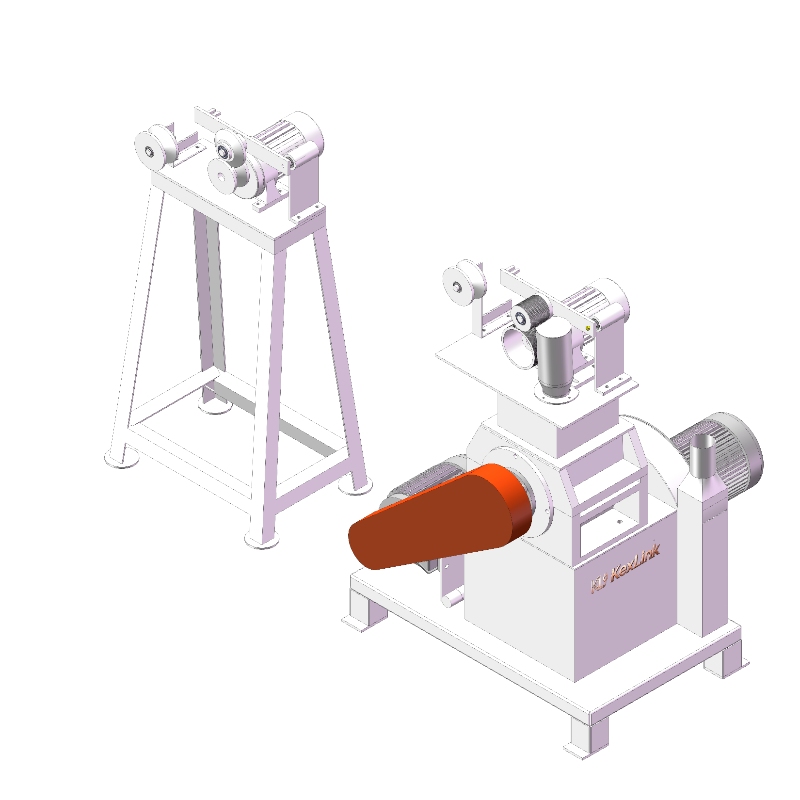

It can be used to collect, crush and convey the edge materials produced by extruders, laminators, sheet machines, and plate machines. The crushed materials are then transported by a conveying fan through a pipeline to a cyclone separator, and then pushed into the extruder screw feed port by a feeding screw for automatic mixing with new materials, thus achieving instant environmental protection and utilization.

Mode	ZGS-255	ZGS-270
Motor Power	2.2KW	4KW
Rotary diameter	180mm	230mm
Fixed blades	2PCS	2PCS
Rotating blades	3PCS	3PCS
Conveyor fan motor power	2.2KW	2.2KW
Motor power of screw conveyor	0.75KW	0.75KW
Pull wheels width	100~150mm	150~280mm
Motor power of pulley wheels	0.75KW	0.75KW
Screen	8MM	8MM
Capacity	30~60Kg/h	50~120Kg/h
Weight	350Kg	420Kg
*Dimensions LWH mm*	12009001100	140010001300
