Description

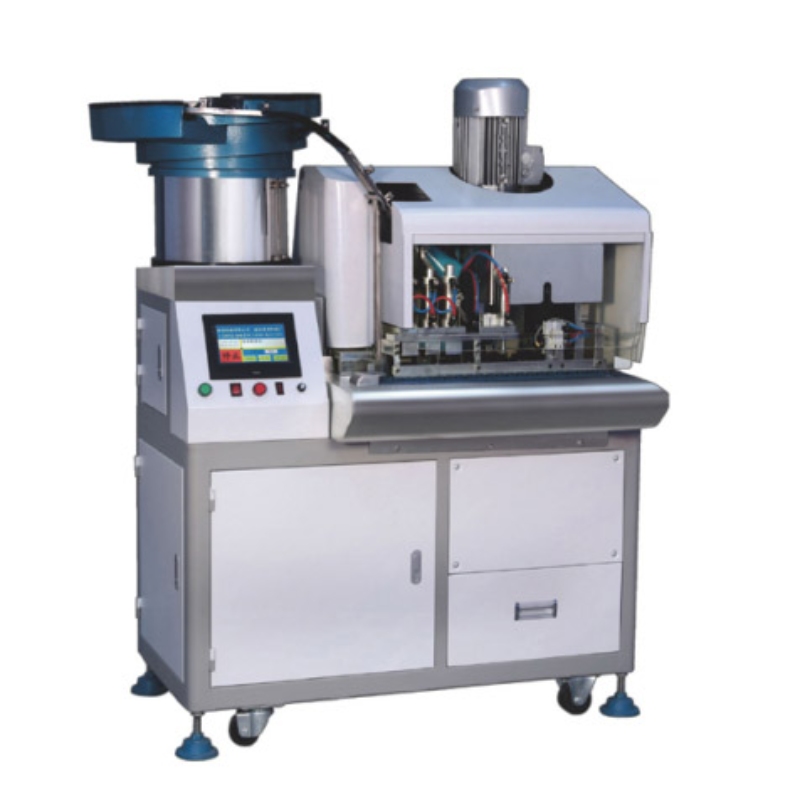

The SD-1800S is a fully automatic two-pin insert terminal crimping machine developed and manufactured by Senjia Machinery. It completes wire cutting, stripping and terminal crimping automatically — replacing 3–5 manual operators on a traditional line.
Designed around human operation habits for safer, more energy-efficient production. High-precision components are sourced from international brands to extend equipment life. Maintenance is simple enough for regular operators to handle.
Applicable Wire
| Specification | Detail |
|---|---|
| Power Supply | AC 220V / 50Hz |
| Machine Functions | Wire cutting, wire stripping, terminal crimping |
| Applicable Wire | RVV / 2C |
| Processing Speed | 1800 – 2000 pcs/hour |
| Air Pressure | 0.5 – 0.8 MPa |
| Stripping Length | 20mm – 25mm (customizable per customer requirements) |
| Machine Dimensions (L×W×H) | 1170mm × 770mm × 1550mm |
| Machine Weight | 433 kg |
