Description

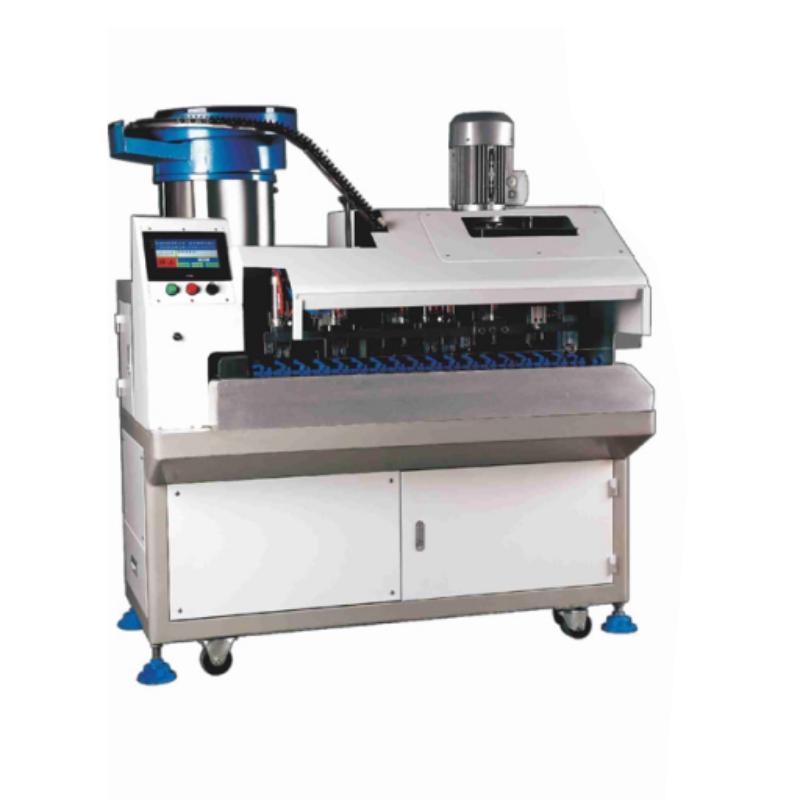

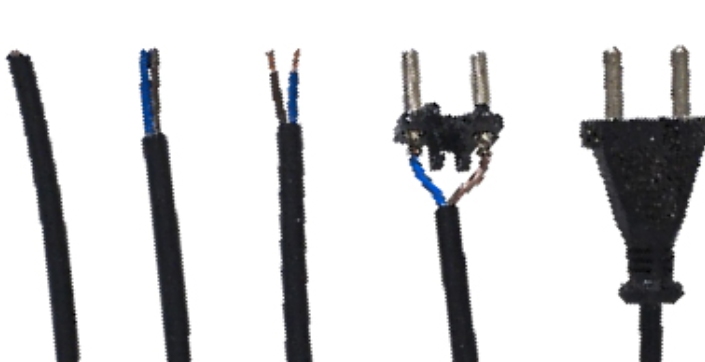

The SD-2500S is a fully automatic two-core round wire insert terminal crimping machine developed and manufactured by Senjia Machinery. It completes wire cutting, stripping, auto-positioning and terminal crimping automatically — replacing 4–5 manual operators on a traditional line.

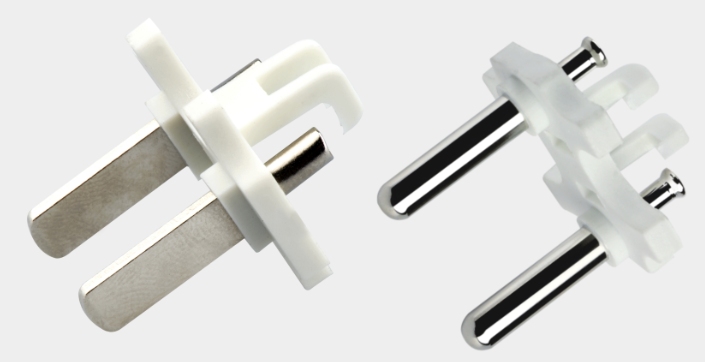

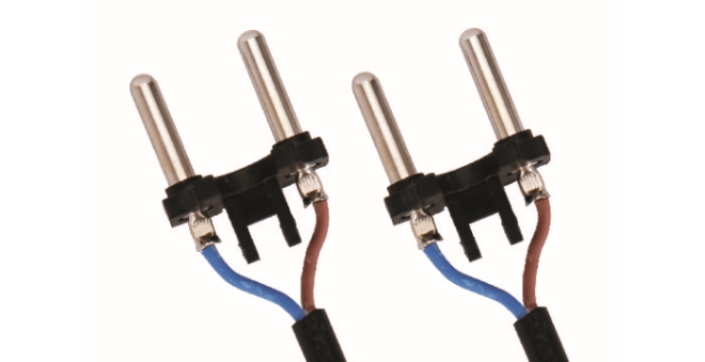

Designed around human operation habits for safer, more energy-efficient production. High-precision components are sourced from international brands to extend equipment life. The machine is compatible with all standard two-pin insert terminals and handles both two-core round wire and flat wire.
| Specification | Detail |
|---|---|
| Power Supply | AC 220V / 50Hz |
| Machine Functions | Wire cutting, wire stripping, automatic positioning, terminal crimping |
| Applicable Wire | H03VVH-F 2-core round wire, H03RR-F 2-core round wire, H03RN-F 2-core round wire, H05VV-F 2-core round wire, H05RR-F 2-core round wire, H05RN-F 2-core round wire |
| Processing Speed | 1800 – 2000 pcs/hour |
| Air Pressure | 0.5 – 0.8 MPa |
| Stripping Length | 20mm – 25mm (customizable per customer requirements) |
| Machine Dimensions (L×W×H) | 1340mm × 810mm × 1530mm |
| Machine Weight | 545 kg |
