Description

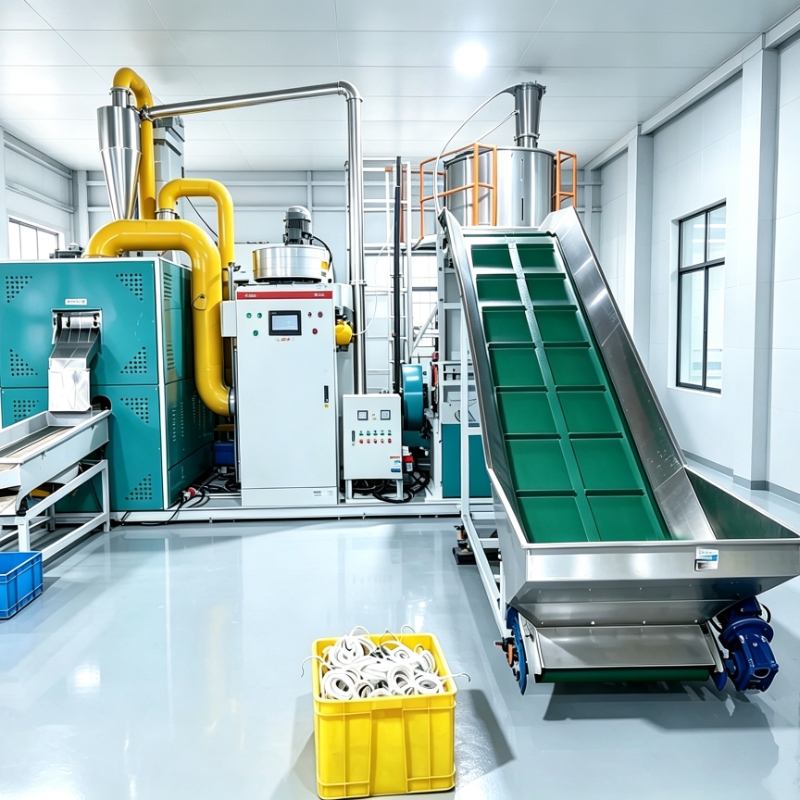

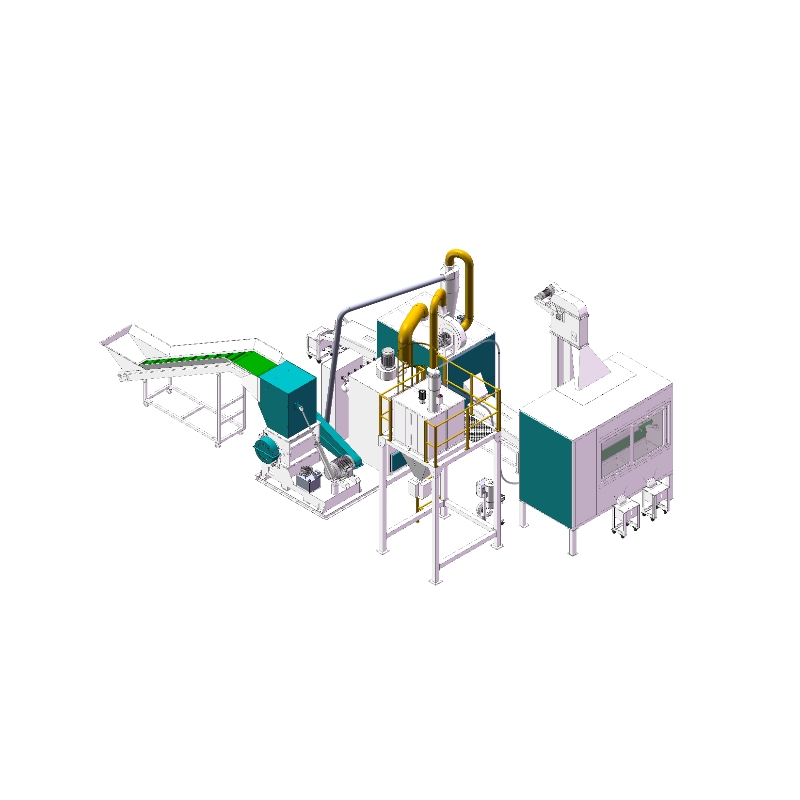

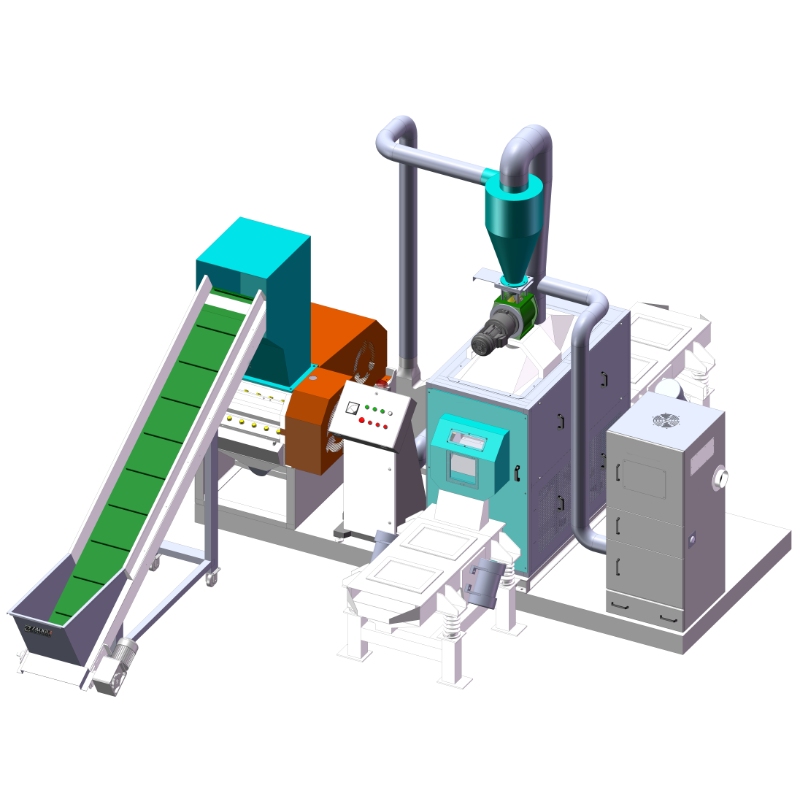

An integrated recycling line for waste wires and cables, combining crushing, sorting, and dust collection in one efficient process.

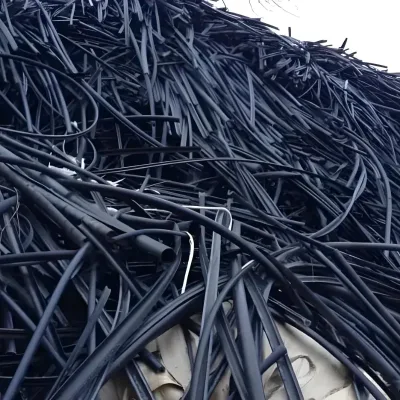

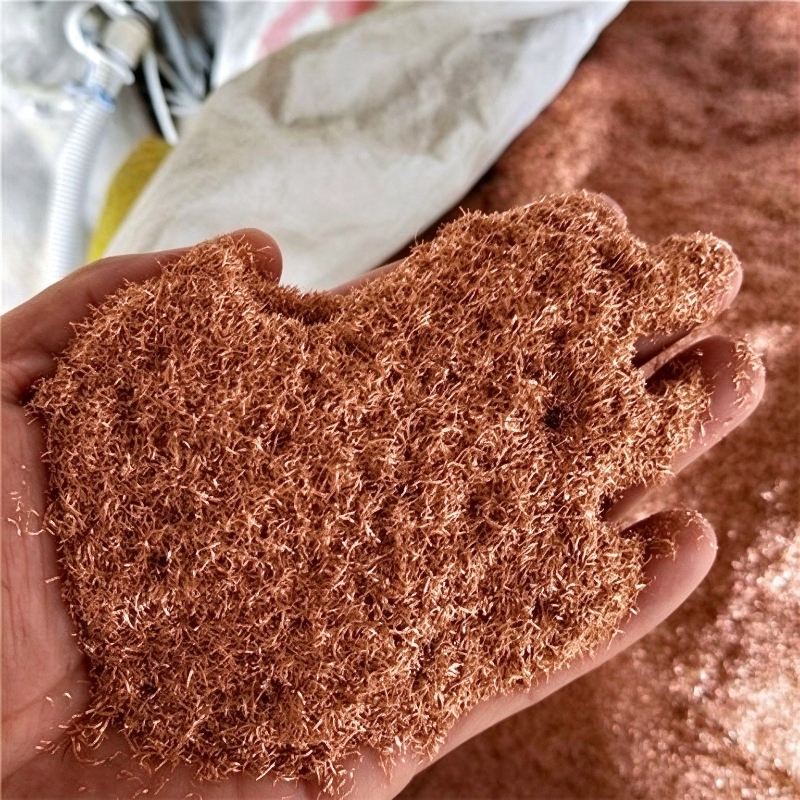

It can process both thick and thin wires without pre-sorting, including automotive wiring, household appliance cables, communication wires, and computer cables. With high separation efficiency, large capacity, low energy consumption, and PLC-controlled operation, the system improves copper recovery while also recycling plastic materials and reducing environmental pollution.
Model | ZG-400S | ZG-600S | ZG-800S | ZG-1200S | ||||
Processing diameter | Φ0.5-Φ20mm | Φ0.5-Φ20mm | Φ0.5-Φ25mm | Φ0.5-Φ25mm | ||||
Overall dimension(LxWxH) | 1800*1500*1700mm | 3900*2000*2200mm | 7200*7500*2500mm | 10000*8700*3100mm | ||||
Weight | 1900kg | 3300kg | 6000kg | 11500kg | ||||
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | ||||
Qutput/h | 80kg~120kg | 200kg~300kg | 300kg~400kg | 500kg~800kg | ||||
Motor Power | 15KW | 40KW | 76KW | 130KW | ||||
