Description

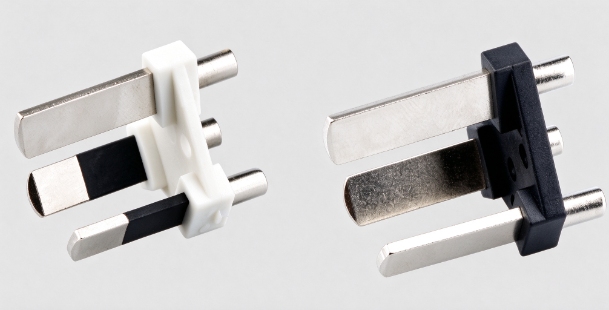

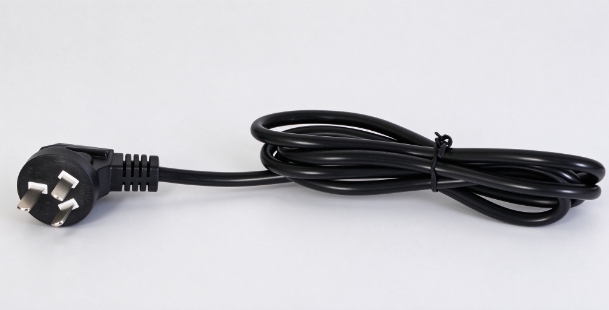

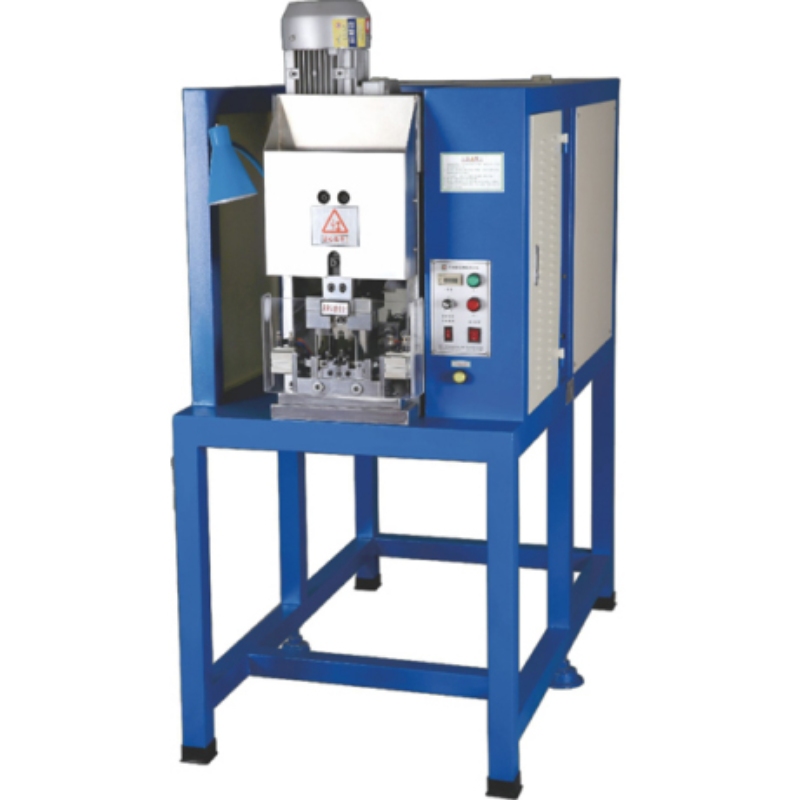

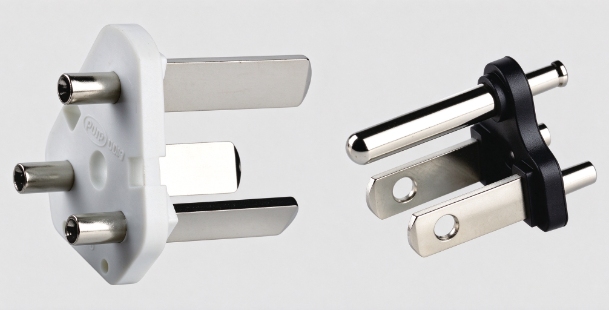

The SD-3500 is an automatic three-pin insert terminal crimping machine developed and manufactured by Senjia Machinery. It is purpose-built for crimping three-pin plug inserts — including CN, US, AU, Swiss, Brazilian standards and IEC C13 power cord terminals.
The crimping zone is fitted with a protection guard for safe operation. Vibratory bowl feeding eliminates manual terminal placement, lifting output while reducing workplace injury risk. Maintenance is simple enough for regular operators to handle.
| Model | Screw Dia | Drive Motor | Productivity | Kneader Force Feed Power | Granulating Motor | Storage Barrel | Weight |
|---|---|---|---|---|---|---|---|
| ZGDG-85 (MATCH 20L) | Φ85mm | 25HP | 100~150kg/h | 5HP | 2HP | 200kgs | 2000kgs |
| ZGDG-100 (MATCH 35L) | Φ100mm | 30HP | 200~300kg/h | 7.5HP | 2HP | 600kgs | 2500kgs |
| ZGDG-120 (MATCH 55L) | Φ120mm | 40HP | 300~400kg/h | 7.5HP | 3HP | 600kgs | 3000kgs |
| ZGDG-150 (MATCH 75L) | Φ150mm | 50HP | 400~600kg/h | 10HP | 3HP | 1000kgs | 3500kgs |
| ZGDG-165 (MATCH 110L) | Φ165mm | 60HP | 600~750kg/h | 10HP | 3HP | 1000kgs | 4000kgs |
| ZGDG-180 (MATCH 150L) | Φ180mm | 60HP | 750~1000kg/h | 10HP | 3HP | 1000kgs | 2000kgs |
