Description

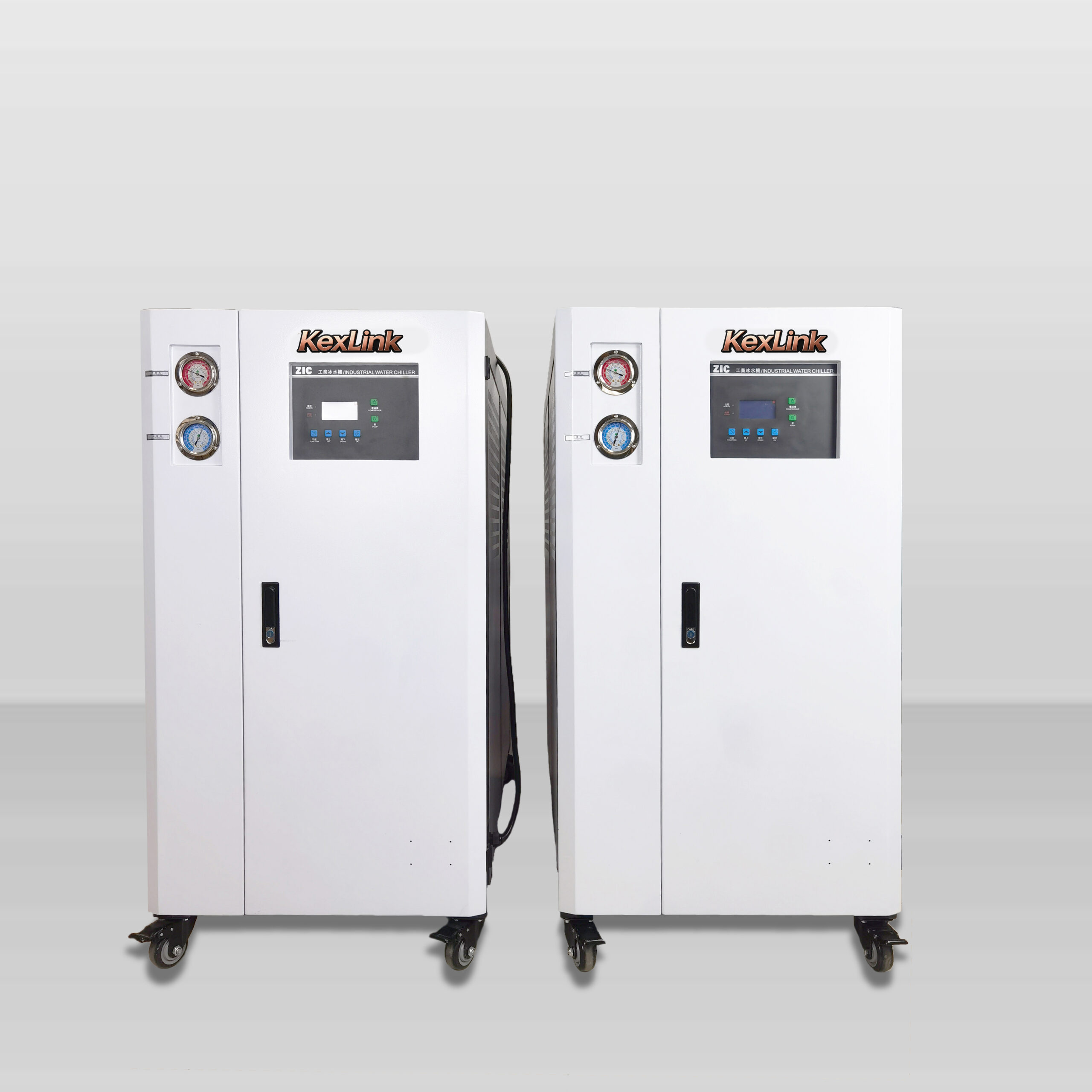

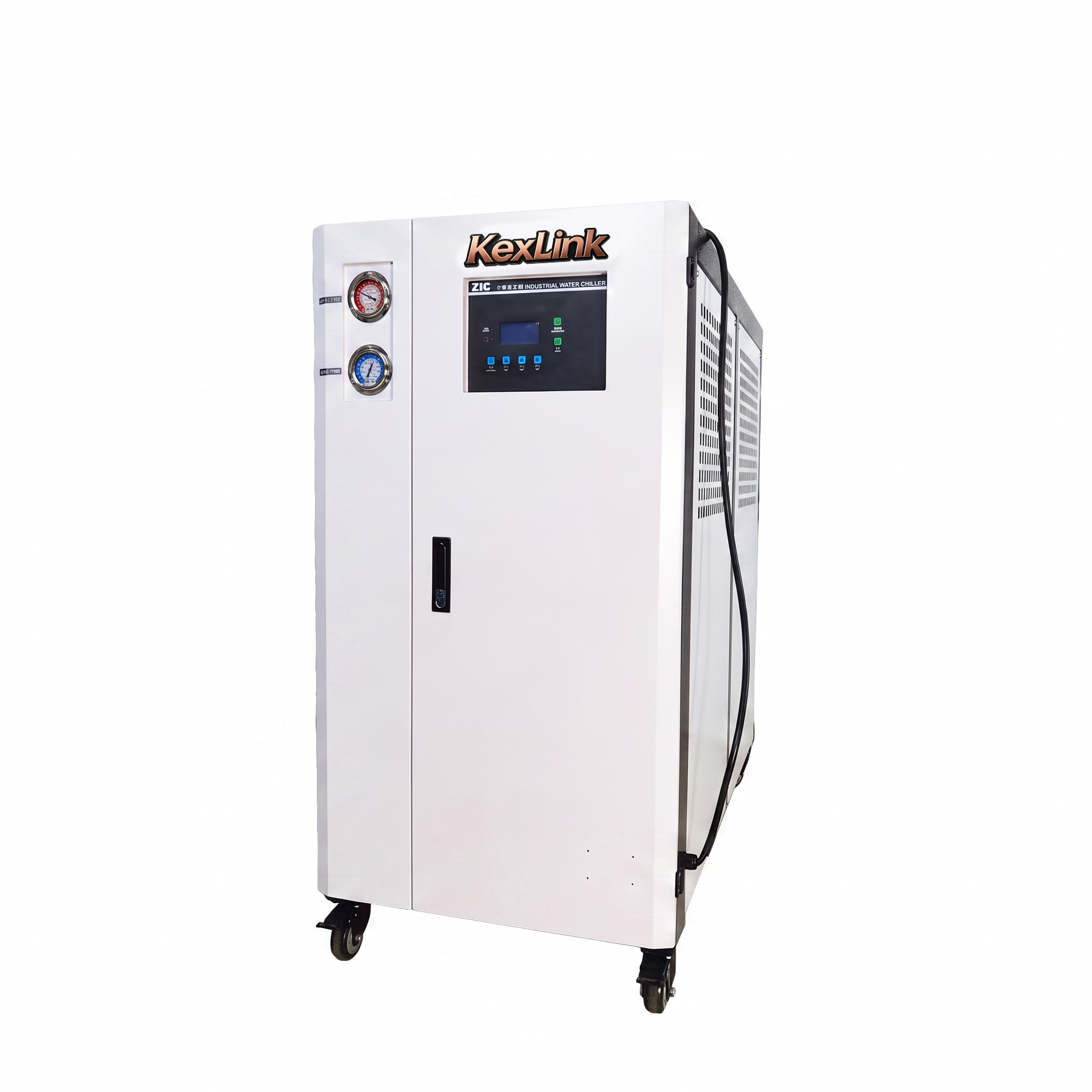

The air-cooled industrial chiller is an efficient and reliable cooling device that can quickly reduce temperature and maintain stable temperature control. It is widely used in the cooling field of modern industry. This series of products are easy to operate and can accurately control the water temperature between -3℃ to +5℃, with a good cooling effect. It is equipped with various protective devices, such as current overload protection, high and low-pressure control, and electronic time-delay safety device, to ensure the safety performance of the product. It is built with a stainless steel insulated water tank that is easy to clean. This series of chillers can also be customized with acid and alkali resistance for a wider range of applications.
mode | ZG-FSC-05A | ZG-FSC-08A | ZG-FSC-10A | ZG-FSC-15A | ZG-FSC-20A |
refrigeration capacity | 13.5KW | 19.08KW | 25.55KW | 35.79KW | 51.12KW |
| 11607 | 16405 | 21976 | 33352 | 43943 |
refrigerant | R22 | ||||
compressor motor power | 3.75 | 6 | 7.5 | 11.25 | 15 |
| 5 | 6 | 10 | 15 | 20 |
cooling fan flow（l/min） | 3900 | 7800 | 9200 | 12600 | 18900 |
fan blade diameter（mm） | 400×2 | 450×2 | 500×2 | 500×3 | 500×4 |
voltage | 380V-400V 3PHASE 50Hz-69Hz | ||||
water tank capacity | 50 | 85 | 85 | 150 | 180 |
water pump power（kw hp） | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 |
| 1/2 | 1 | 1 | 2 | 2 |
water pump flow rate（l/min） | 50-100 | 100-200 | 100-200 | 160-320 | 160-320 |
safety equipment | high/low pressure switch oil pressure switch safety overheat control fuse compressor built-in thermostat
| ||||
current consumption during operation | 9 | 13 | 15 | 27 | 38 |
insulation material | foam tape rubber hose
| ||||
size（D×W×H） | 1350×650×1280 | 1500×820×1370 | 1500×820×1370 | 1900×950×1540 | 1900×950×1540 |
net weight | 315 | 400 | 420 | 560 | 775 |
